Brand Name : Dothinkey
Model Number : CC16Pro
Certification : CE
Place of Origin : Shenzhen, China
MOQ : 1
Price : USD1200-USD5000
Payment Terms : T/T
Supply Ability : Stock Available
Delivery Time : 5-8 Working Days
Packaging Details : Carton Packaging
Color : Black
Input Voltage : 100V/AC ~ 240V/AC; 50Hz/60Hz
Output Voltage : 24V/DC
Output Current : 5A
Power Supply : DC 24V/5A
External Interface ESD Protection : uman Body Model (HBM) ≥ ±4000V
Working Temperature : 10℃~35℃
PC Communication Interface : 10G Fiber Optic ×2
Dothinkey CC16Pro Image Grabber for Automotive Camera Module Aging Test Box
Functions:
1.1-16 channels.
2.0-18V power supply setting.
3.Support dual fiber optic communication.
Device ID application:

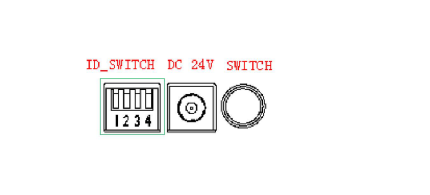

The CC16Pro image grabber provides 4 programmable device IDs. In automation applications, to facilitate the identification of the corresponding test boxes for each workstation, you can toggle the dip switch on the test box to set the device ID number required for the image grabber. The following figure shows the position of the dip switch (the first position is the in place check enable control position for the upper and rear covers, and the second, third, and fourth positions are reserved):

|
|
